Flexible sleeves ELYT+

ELYT+

TECHNICAL DATA SHEET REGISTER

TECHNICAL DATA SHEET REGISTER VERSION KIT [litebox id="boutonVoirVideo" href="#modalVideo" anch="PRESENTATION DU REGISTRE VERSION KIT" ]

Advantages

Airtightness	Up to class D (EN 15727)
Energy efficiency	Reduce energy consumption
Dimensions	Custom made sleeve
Installation	Easy and fast to install

Dimensions

Min	200 x 200 mm
Max	4400 x 4400 mm
Height	130 mm
Frame's width	20 or 30 mm

Characteristics

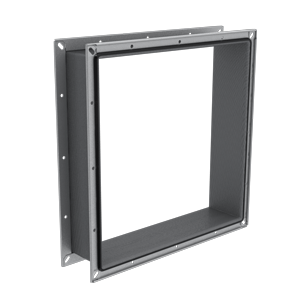

The airtight duct connector ELYT+ has been designed to connect ventilation equipements to rectangular ductworks. It prevents the transmission of vibrations and noise along the ventilation ductwork. ELYT+ is available in two versions :

ELYT+ A = ready for assembly
ELYT+ M = turnkey flexible sleeve

Construction:

Sleeve’s body: fiberglass fabric coated with polyurethane or polyester coated with PVC
Assembly by sewing
Frame: galvanized steel, stainless or aluminum
Integrated gasket: TPE
Connection: 90° end

Performance:

Fire class: A2 or non classified
Acceptable pressure: 2 000 Pa
Airtightness: class D or B (EN 15272) depending on the fabric
Operating temperature: -30 to +110°C (fiber glass fabric coated with polyurethane), -30 to +70°C (polyester fabric coated with PVC)

Different fabrics on request
