Advantages
Protection | Good separation of sand from intake air |
Construction | Large dimensions |
Dimensions
Min | 150 x 150 mm |
Max | Section up to 4m² (Over 4m² : multi-section units available) |
Frame's width | 95 mm |
![](https://www.f2a.fr/wp-content/uploads/2018/08/82_grille-sable-gs.png)
![](https://www.f2a.fr/wp-content/uploads/2018/08/82_b_grille-sable-gs-2.png)
Characteristics

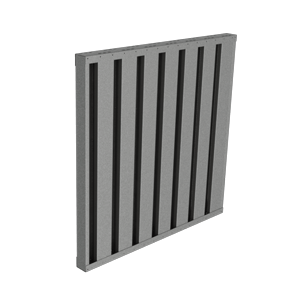

The GS sand-trap louvre is designed to remove the bulk of airborne sand and dust from inlet air in dry environnements. Sand-trap louvre is used as a prefilter but can not be intended as a substitute for conventional filters.
Construction:
- Frame and blades: galvanized, stainless steel or aluminum

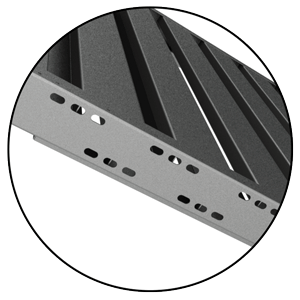

- Sand blades: evacuation holes in the lower parts
Recommended air velocity:
- Up to 2 m/s
Option:
- Powder coatings to any standard RAL colour on request
