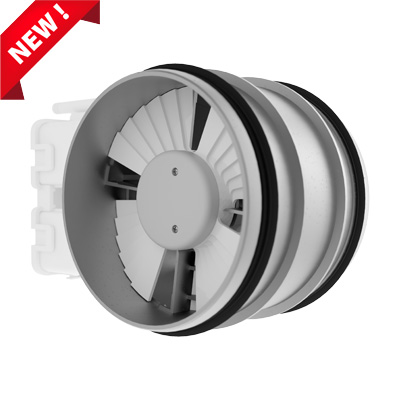

Circular damper e·VAV
e·VAV
TECHNICAL DATA SHEET REGISTER
TECHNICAL DATA SHEET REGISTER VERSION KIT
[litebox id="boutonVoirVideo" href="#modalVideo" anch="PRESENTATION DU REGISTRE VERSION KIT" ] Avantages
| energy self-sufficient | No battery, no external power |
| connected | LoRaWAN protocol |
| easy installation | No cables, insertion with rubber seal |
| indoor air quality monitoring | Embedded CO2 sensor (option) |
Dimensions
| Diameter | Ø125 mm, Ø160 mm, Ø200 mm, Ø250 mm |
| Lenght | 105 mm, 200 mm according the diameter |
Characteristics
The e·VAV is a variable air volume damper to manage fresh air in commercial and school buildings. It controls indoor air quality according to CO level or presence in the premises.
e·VAV generates its own electricity thanks to its turbine actuated by the airflow, enables to operates the damper iris
Construction :
- Casing : PC-ABS
- Setting iris : PC-ABS
- Coffret de régulation : PC-ABS
- Joints sur les raccordements : EPDM
Performances :
- Operating temperature : 0°C to 45°C
- Airflow range : 20 – 250 m³/h
Versions :
- e·VAV, variable air volume damper, energy selfsufficient and connected
- e·QAI, variable air volume damper with air quality
sensor (CO2 ou COV), self-sufficient and connected - Pack e·VAV QAI : made of one e·VAV QAI air quality sensor CO2 for extract, one e·VAV for supply, one master/slave wire
