Circular dampers RCVS / RCVS-I
RCVS / RCVS-I
TECHNICAL DATA SHEET REGISTER
TECHNICAL DATA SHEET REGISTER VERSION KIT
[litebox id="boutonVoirVideo" href="#modalVideo" anch="PRESENTATION DU REGISTRE VERSION KIT" ] Advantages
| Air flow setting | Precise and independant setting of pressure |
| Intake | For control and maintenance |
| Possible use | Constant air flow |
| Regenerations | Tested in a laboratory (EN 7235) |
Dimensions
| Eurovent standard diameters | From Ø100 to 400 mm |
| Length | Depending on the diameter |
Characteristics

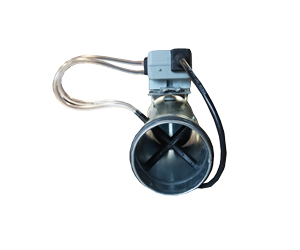

The RCVS damper is a self-regulated system with adjustable air flow. It enables to control the air flow in a building’s zone according to specific instructions. It is also available in insulated version (thermal insulation). Construction:
- Casing and blade: galvanised or stainless steel 304, 316L
- EPDM gasket
Performances:
- Upstream/downstream airtightness: class 3 (EN 1751)
- Casing’s airtightness: class C (EN 1751)
- Air flow range: from 45 to 5500 m3/h
- Operating temperature: -20 to +80°C
Option:
- Insulated version with mineral whool
- Supply of a remote control for modifying the regulation range on site
- Actuators MPBUS, LON, MOD-BUS, BACNET
