Aeraulic
Upstream/downstream airtightness
Class 3 (EN 1751)
Frame's airtightness
Up to class C (EN 1751)
Large dimensions
Up to 2000 x 1950 mm
Motorized version
Available on request
Possible coupling
External louver
Min
200 x 150 mm
Max
2000 x 1950 mm
L with a pitch of
100 mm
H with a pitch of
150 mm
Blades' height
150 mm
Frame's width
160 mm

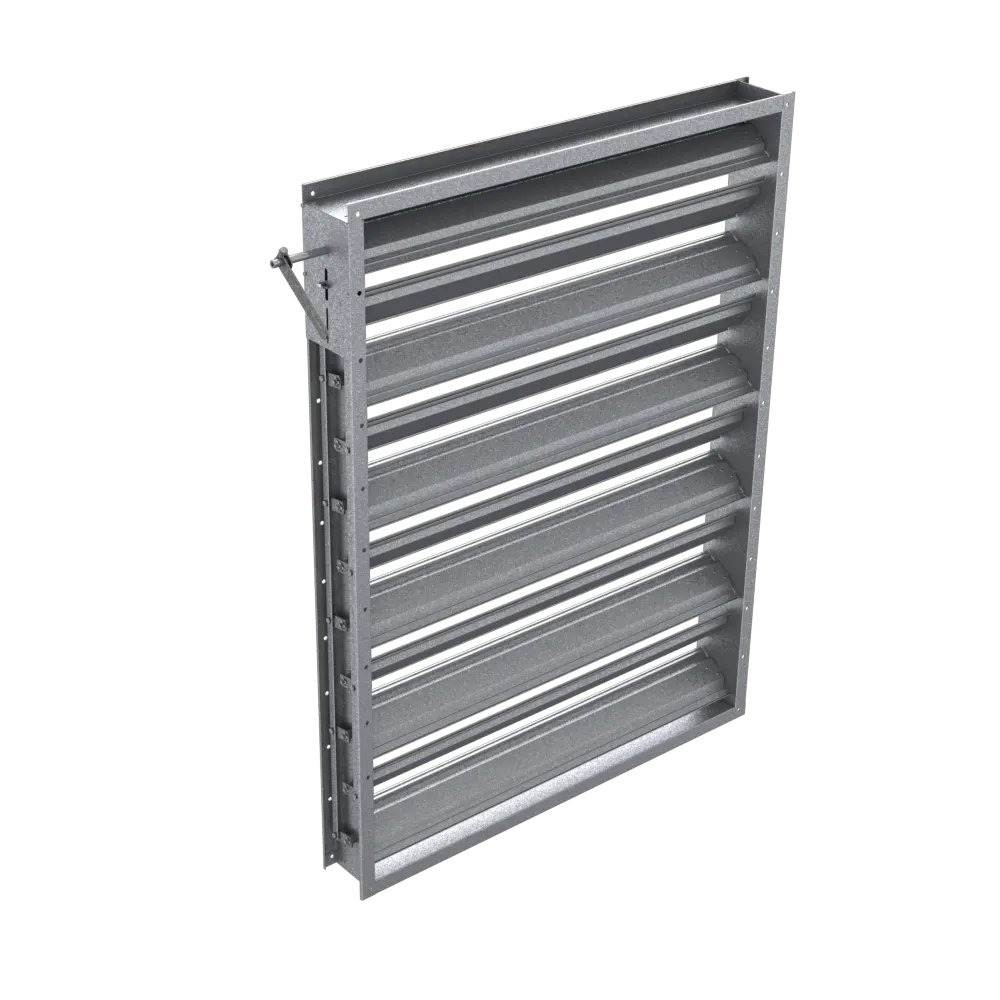

PLS
- Rectangular
- Rectangular
Market
For more information, please do not hesitate to contact us.
Characteristics
PLS damper is designed to shut off large-sized ventilation networks. It is suitable for commercial HVAC applications.
Construction:
- Frame and blades: galvanized or stainless steel 304L
- Lateral gaskets: stainless steel
- Gaskets’ blades: EPDM
- Control shift: Ø16 mm
- Blades actuation via linkage
- Manual or motorized control in factory
Performances:
- Upstream/downstream airtightness: class 3 according to EN 1751
- Frame’s airtightness: class A according to EN 1751
- Acceptable pressure: 2 000 Pa for a length of L = 1m
- Operating temperature: -20 to +80°C (+200°C in option)
In option:
- Frame’s airtightness: class C according to EN 1751
- Operating temperature up to +200°C
- Painting
Upstream/downstream airtightness
Class 3 (EN 1751)
Frame's airtightness
Up to class C (EN 1751)
Large dimensions
Up to 2000 x 1950 mm
Motorized version
Available on request
Possible coupling
External louver
Min
200 x 150 mm
Max
2000 x 1950 mm
L with a pitch of
100 mm
H with a pitch of
150 mm
Blades' height
150 mm
Frame's width
160 mm
DOCUMENTATION
Technical datasheet of PLS damper
