RC

Description

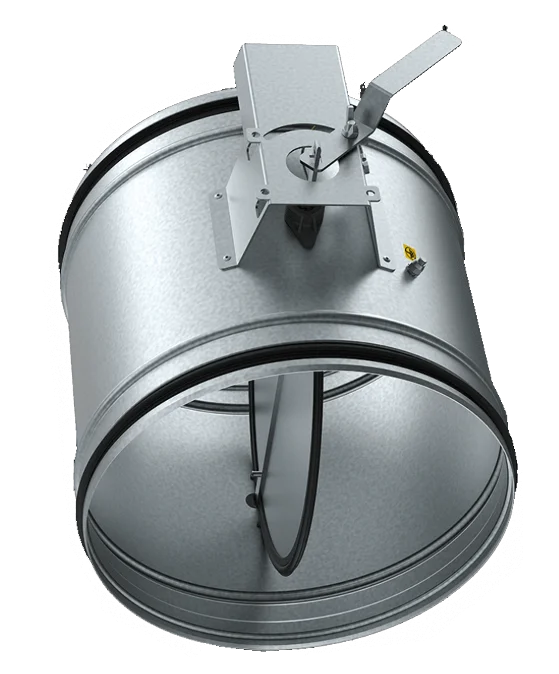

The RC range of circular dampers is designed for airflow control, balancing, and isolation in ventilation systems. Manufactured from galvanized steel or stainless steel, it is installed directly within circular ductwork and provides efficient balancing and isolation of commercial HVAC and ventilation systems.

Compact and easy to install, the RC range is particularly well suited to ventilation networks requiring manual or motorized airflow control.

Available in galvanized steel or 304L / 316L stainless steel, it can be integrated into commercial buildings, technical HVAC systems, commercial premises, light industrial facilities, and healthcare environments.

The RC circular damper range is available with manual operation, motorizable, or fully motorized actuation to suit modern HVAC installations and Building Management Systems (BMS).

Characteristics

• Type: Circular damper
• Functions: Airflow control / isolation / airtight shut-off
• Size range: Standard Eurovent diameters
• Blade airtightness: Unclassified up to Class 4 according to EN 1751
• Casing airtightness: ATC3 according to EN 1751 (formerly Class C)
• Maximum operating pressure: 1,000 Pa
• Operating temperature range: -20°C to +80°C
• Materials: Galvanized steel or stainless steel
• Actuation: Electric

Performances:

Airtightness

• RCO: Unclassified
• RCS: Class 3 according to EN 1751
• RCE: Class 4 according to EN 1751

Pressure rating

The RC damper range is designed to withstand differential pressures of up to 1,000 Pa.

Operating temperature range

• Standard: -20°C to +80°C

Applications

• Commercial HVAC ductwork
• Office ventilation systems
• Commercial premises
• Supply air systems
• Return air systems
• Commercial building ventilation
• Technical installations
• Hospitals
